●   Silenced Type (Box Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
2290 5048 3050 120 140~190 37~50 160~180 2276~2560 300~450 1” 150 5.9 23~28

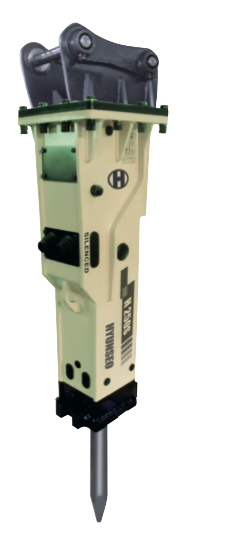

H 250S
2890 6371 3250 127 180~240 48~63 160~180 2276~2560 300~450 1 1/4” 155 6.1 28~35
H 300S
3150 6944 3470 136 200~260 51~69 160~180 2276~2560 250~400 1 1/4” 165 6.5 30~45

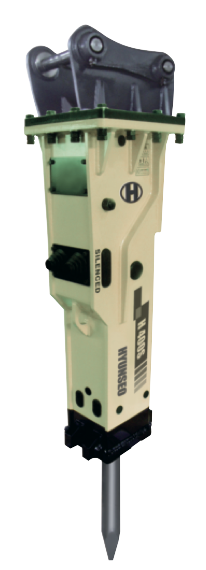

H 400S
4075 8983 3700 145 200~260 55~77 160~180 2276~2560 200~350 1 1/4” 175 6.9 40~55

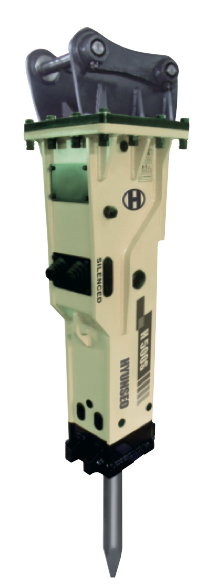

H 500S
●   Standard Type (Open Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
2210 4872 3100 122 140~190 37~50 160~180 2276~2560 300~450 1” 150 5.9 23~28

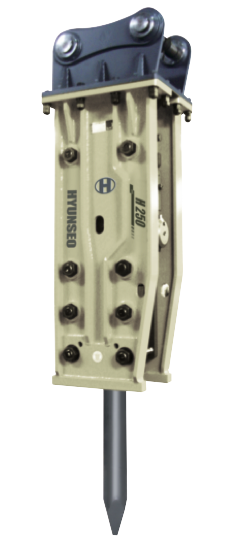

H 250
2790 6150 3300 129 180~240 48~63 160~180 2276~2560 300~450 1 1/4” 155 6.1 28~35
H 300
3060 6746 3520 138 200~260 51~69 160~180 2276~2560 250~400 1 1/4” 165 6.5 30~45

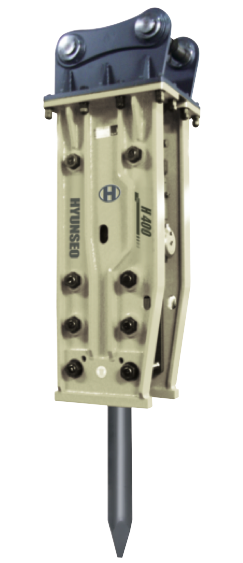

H 400
3970 8752 3760 148 200~260 55~77 160~180 2276~2560 200~350 1 1/4” 175 6.9 40~55

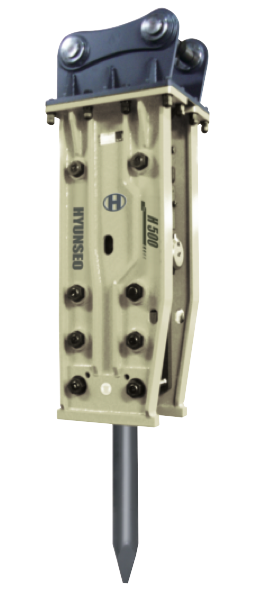

H 500
●   Side Type (Triangle Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
2130 4695 2571 101 140~190 37~50 160~180 2276~2560 300~450 1” 150 5.9 23~28
H 250E
2700 5952 2730 107 180~240 48~63 160~180 2276~2560 300~450 1 1/4” 155 6.1 28~35
H 300E
2950 6503 2900 114 200~260 51~69 160~180 2276~2560 250~400 1 1/4” 165 6.5 30~45
H 400E
3850 8487 3100 122 200~260 55~77 160~180 2276~2560 200~350 1 1/4” 175 6.9 40~55

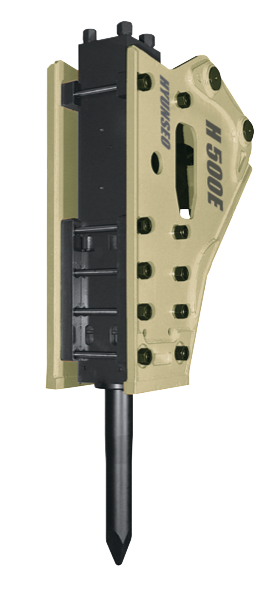

H 500E
