VO Series Medium Range

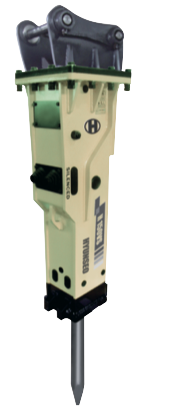

● Silenced Type (Box Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

1240 2728 2513 99 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20

H 150VS

1710 3769 2766 109 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

H 200VS

2454 5410 3057 120 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32

H 300VS

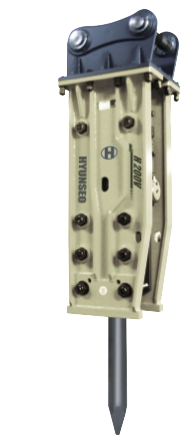

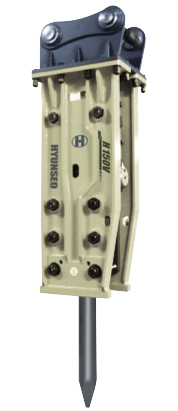

● Standard Type (Open Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

1252 2760 2637 103 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20

H 150V

1668 3677 2695 106 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

H 200V

2380 5247 2788 109 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32

H 300V

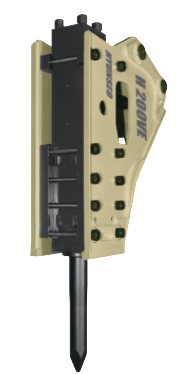

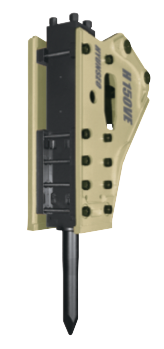

● Side Type (Triangle Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

1269 2798 2590 102 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20

H 150VE

1684 3712 2650 104 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

H 200VE

2394 5277 2710 107 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32

H 300VE
