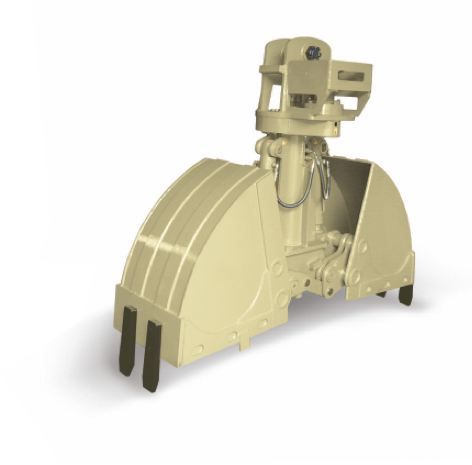

A-Type

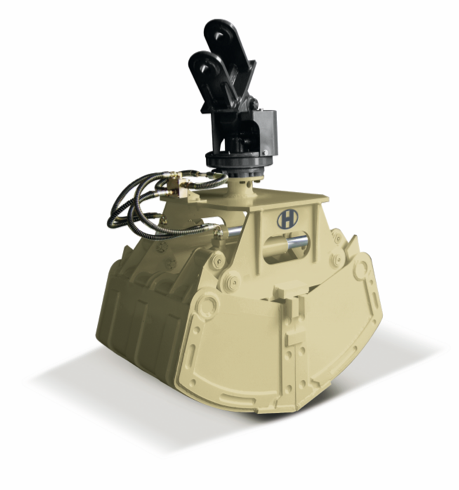

B-Type
※
The above specifications are subject to change without prior notice for quality
improvement.
A-Type
Capacity (LT)
Weight (kg)
Min
Max
H
H1
L
Carrier (ton)
200
300
893
1342
1154
917
350
2~3
300
380
893
1342
1154
917
500
3~5
400
560
1032
1532
1302
1091
550
5~7
HCS
200
H
CS
300
LT
kg
mm
mm
mm
mm
mm
ton
H
CS
400
500
600
1232
1665
1302
1196
650
8~12
H
CS
500
Unit
※
The above specifications are subject to change without prior notice for quality
improvement.
B-Type
Capacity (LT)
Weight (kg)
Min
Max
H
H1
L
Carrier (ton)
600
720
1752
2223
2200
1408
600
12~18
800
980
1752
2223
2200
1408
800
18~25
1000
1200
1856
2328
2253
1408
900
28~35
HCS
600
HCS
800
LT
kg
mm
mm
mm
mm
mm
ton
HCS
1000
1500
1500
2151
2641
2404
1408
1200
36~42
HCS
1500
2000
1810
2247
2735
2450
1425
1500
43~47
HCS
2000
Unit
MAX
MAX
MIN
L
H1
H
MIN
L
H1
H

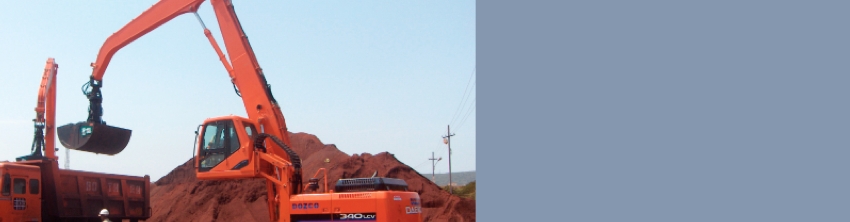

•Grain transport and up/get off work

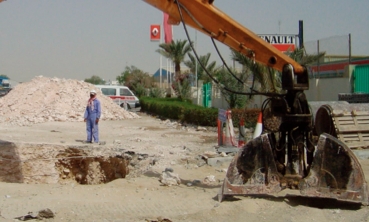

•Dirt digging sand dredging
•Industrial waste disposal
•Crane hoistscan be installed
•One Cylinder and two Cylinders.(tow types)
► Feature
