A
H
1
H
B
W
Model
HRS 03
HRS 06
HRS 08
HRS 10
4~6
9~13
18~22
28~32
110~200
150~220
160~240
160~240
1,190
1,400
1,740
1,870
250
250
260
260
Applicable
Carrier(ton)
100
120
250
268
B
(mm)
1,280
1,700
2,100
2,345
A
(mm)
430
507
620
665
1,360
1,625
2,045
2,210
W
(mm)
Cylinder Oil
Pressure(cm
2
)
H1
(mm)
H
(mm)
365
850
1,960
2,100
Weight
(kg)
Cylinder Setting
Pressure(kg/cm
2
)
30~50
90~120
100~150
130~200
Flow
Rate(l/min)
MR315CU
MT500
MT500
MT500
Hyd.
Motor
61
160
160
160
225
300
300
300
Max Torque
(daNm)
Max Inlet
Pressure (bar)
240
285
285
285
Max
Speed (rpm)
75
150
150
150
Max Flow
Rate
(l/min)
※
The above specifications are subject to change without prior notice for quality
improvement.

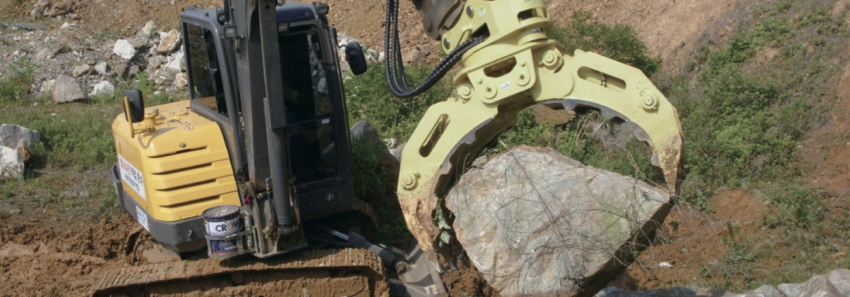

•Carrying rocks and excellent performance in loading
•Strong power and a crash-cushion on high pressure cylinder
•Excellent abrasion resistance and high gradient prolong its life
•Swing bearing shock absorber
•The safety check valve in cylinder prevents the grabbed material from falling
down.
► Feature
