P Series Small Range

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating Weight

Overall Length

Required oil flow

Operating pressure

Impact rate

Hose diameter

Applicable carrier

Tool diameter

Silenced Type (Box Type)

Standard Type (Open Type)

Side Type (Triangle Type)

Silenced Type (Box Type)

Standard Type (Open Type)

Side Type (Triangle Type)

kg lb kg lb kg lb mm inch mm inch mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

95 209 65 143 65 143 1090 42.9 1078 42.4 927 36.5 15~30 4~8 90~120 1280~1707 800~1400 1/2 40 1.6 0.8~2.5

H 10-P

116 256 80 176 80 176 1147 45.2 1155 45.5 1005 39.6 20~40 5.3~10.6 90~120 1280~1707 700~1200 1/2 45 1.8 1.2~3

H 20-P

130 286 98 216 98 216 1227 48.3 1186 46.7 1057 41.6 25~50 6.6~13.2 90~120 1280~1707 600~1100 1/2 53 2.1 2.5~4.5

H 30-P

165 363 160 352 150 330 1409 55.5 1360 53.5 1176 46.3 30~60 7.9~16 100~130 1422~1849 500~1000 1/2 60 2.4 3~5.5

H 40-P

280 616 260 572 260 572 1551 61.1 1495 58.9 1280 50.4 40~70 10.6~18.5 110~140 1565~1991 500~900 1/2 68 2.7 4~7

H 50-P

358 788 340 748 340 748 1785 70.3 1728 68 1504 59.2 50~90 13.2~23.8 120~150 1707~2134 400~800 1/2 75 3.0 6~9

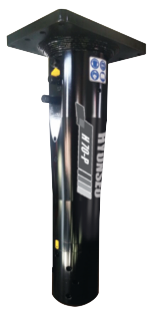

H 70-P
