VI Series Medium Range | Hyunseo Heavy Equipment





● Silenced Type (Box Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

530 1168 2068 81 60~100 16~26.5 130~160 1849~2276 400~800 3/4” 85 3.3 7.0~12

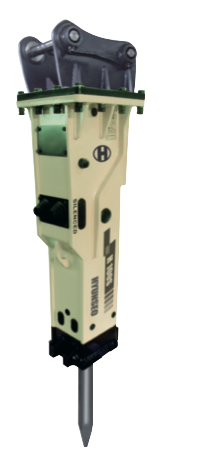

H 100S

880 1940 2361 92 80~110 21~29 150~170 2134~2418 400~700 3/4” 100 3.9 11~16

H 140S

1307 2881 2615 102 90~120 24~32 150~170 2176~2466 400~600 1” 125 4.9 14~18

H 160S

1462 3223 2701 106 100~150 27~40 160~180 2276~2560 400~600 1” 135 5.3 16~21

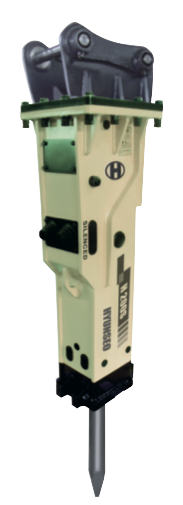

H 200S

1903 4195 2860 112 120~180 32~48 160~180 2276~2560 350~500 1” 140 5.5 18~26

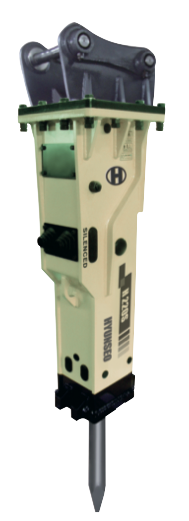

H 220S





● Standard Type (Open Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

508 1119 2115 83 60~100 16~26.5 130~160 1849~2276 400~800 3/4” 85 3.3 7.0~12

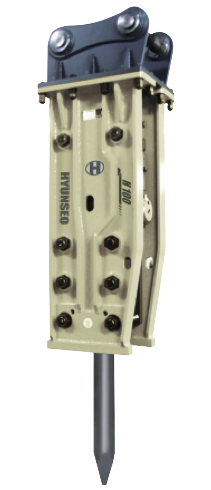

H 100

872 1922 2387 93 80~110 21~29 150~170 2134~2418 400~700 3/4” 100 3.9 11~16

H 140

1255 2766 2621 103 90~120 24~32 150~170 2176~2466 400~600 1” 125 4.9 14~18

H 160

1455 3207 2757 108 100~150 27~40 160~180 2276~2560 400~600 1” 135 5.3 16~21

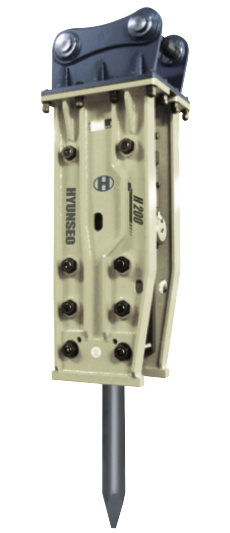

H 200

1871 4124 2920 114 120~180 32~48 160~180 2276~2560 350~500 1” 140 5.5 18~26

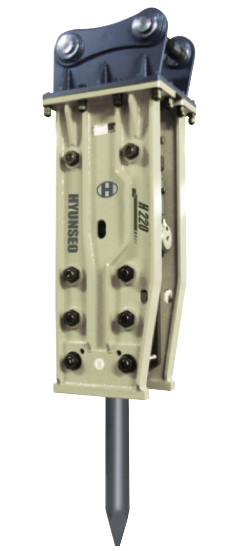

H 220

● Side Type (Triangle Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

492 1084 1728 68 60~100 16~26.5 130~160 1849~2276 400~800 3/4” 85 3.3 7.0~12

H 100E

853 1880 1927 75 80~110 21~29 150~170 2134~2418 400~700 3/4” 100 3.9 11~16

H 140E

1230 2711 2155 84 90~120 24~32 150~170 2176~2466 400~600 1” 125 4.9 14~18

H 160E

1420 3130 2289 90 100~150 27~40 160~180 2276~2560 400~600 1” 135 5.3 16~21

H 200E

1810 3990 2337 92 120~180 32~48 160~180 2276~2560 350~500 1” 140 5.5 18~26

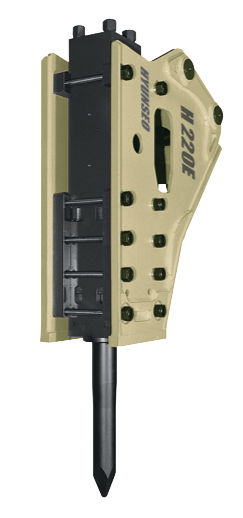

H 220E
