Auger Drill

Orange Grapple

Clam Shell

Compactor

Vibrating Bucket

Lifting Fork

Bucket
Hose & couple options : Absolutely high quality
Fored hood ears : Deal with the heavy strain of daily use. All hold pins are locked for extra safety
Hydraulic motors : Imported from USA Developing the most reliable attachments
ERICYUC gearbox : Unique planetary gearbox Multiplied output torque Extreme efficency
Old Hood Ear
New Hood Ear
Tooth locking System
Tungsten Type : It fit to clay, snady land or a little gravel. Digging the soil land very easily.
Rock Type : It fit to rock, pitch or a lot of gravel land. Harder than tungsten type.

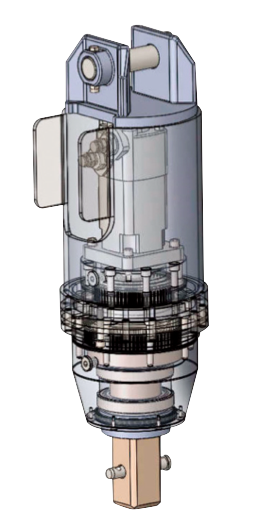

Earth Auger is a kind of post hold machine. It can be mounted to all common hydraulic excavators as well as skid steer loader, backhoe loader telescopic handler, wheel Loader and other machinery.
► Feature
※  The above specifications are subject to change without prior notice for quality improvement.
Model
Carrier Torque Pressure Oil Flow Range Rotary Speed Hydraulic Hose Output Shaft Unit Weight Unit Height Unit Max. Dia Hitch options Auger Series Auger Length Auger dia. Range
1.5~3 ≤2432 205 30~61 40~82 1/2 Ø65 54 595 200 S4 1200 100~500
2~3.5 ≤2877 240 30~61 40~81 1/2 Ø65 71 700 244 S4 1200 100~600
3~5 ≤4218 240 38~76 32~64 1/2 Ø65 71 700 244 S4 1200 100~900
HAD 2000
HAD 2500
HAD 3500
HAD 4500
4.5~7 ≤5056 240 38~76 29~58 1/2 Ø75 108 780 269 S5 1500 150~600
HAD 5000
5~7 ≤5910 240 45~83 28~50 1/2 Ø75 108 780 269 S5 1500 150~750
HAD 5500
6~8 ≤6150 240 45~106 34~80 3/4 Ø75 110 850 269 S5 1500 150~900
HAD 6000
7~10 ≤6931 240 61~121 37~72 3/4 Ø75 112 850 269 S5 1500 150~900
HAD 7000
8~12 ≤8048 240 61~136 29~64 3/4 Ø75 115 850 269 S5 1500 150~900
HAD 8000
10~13 ≤10778 240 70~136 26~45 3/4 Ø75 167 930 290 S6 1750 150~900
HAD 10000
13~17 ≤11976 240 80~140 22~43 1 Ø75 167 930 290 S6 1750 150~900
HAD 12000
13~17 ≤15046 240 80~151 20~39 1 Ø75 167 930 290 S6 1750 150~1200
HAD 15000
13~17 ≤19039 240 80~170 17~34 1 Ø75 185 930 290 S6 1750 150~1200
HAD 20000
15~23 ≤24949 250 90~180 16~30 1 Ø75 185 930 290 S6 1750 150~1200
HAD 25000
ton N.m Bar l/min rpm inch mm kg mm mm mm mm mm
2.5~4.5 ≤3614 240 30~68 32~72 1/2 Ø65 71 700 244 S4 1200 100~750
HAD 3000
Unit
1~2.5 ≤1872 205 23~53 40~92 1/2 Ø65 54 595 200 S4 1200 100~400
Single Pin Hitch Double Pin Hitch Cradie Hitch
