Model
HRW 03
HRW 06
HRW 08
HRW 10
4~6
9~13
18~22
28~32
110~200
150~220
160~240
160~240
1,190
1,400
1,740
1,870
250
250
260
260
Applicable
Carrier(ton)
100
120
250
268
B
(mm)
1,280
1,700
2,100
2,345
A
(mm)
430
507
620
665
1,360
1,625
2,045
2,210
W
(mm)
Cylinder Oil
Pressure (cm
2
)
H1
(mm)
H
(mm)
365
850
1,960
2,100
Weight
(kg)
Cylinder
Setting Pressure
(kg/cm
2
)
30~50
90~120
100~150
130~200
Flow
Rate(l/min)
MR315CU
MT500
MT500
MT500
Hyd.
Motor
61
160
160
160
225
300
300
300
Max
Torque
(daNm)
Max Inlet
Pressure (bar)
240
285
285
285
Max
Speed (rpm)
75
150
150
150
Max Flow
Rate
(l/min)
※
The above specifications are subject to change without prior notice for quality
improvement.
W
A
H
1
H
B

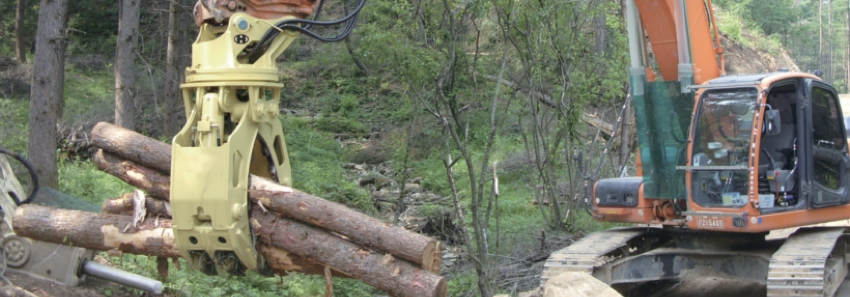

•Outstanding performance on loading at the logging place
•High use in various works
•During the swing work, it prevents the grabbed material from falling
down by grabbing more safely even when the machine is stopped
► Feature
