Orange Grapple

※ The above specifications are subject to change without prior notice for quality improvement.

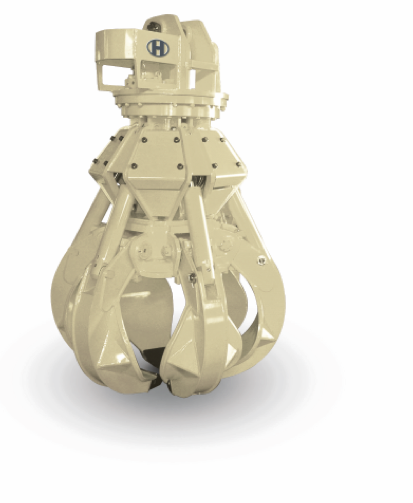

A-Type

Capacity Weight Min Max H H1 Carrier

600 1200 928 1774 1535 1304 12~18

800 1560 961 1945 1647 1392 18~25

1000 1800 1198 2178 1863 1600 28~35

HOG 600

HOG 800

LT kg mm mm mm mm ton

HOG 1000

1500 2200 1376 2513 2081 1793 36~42

HOG 1500

Unit

※ The above specifications are subject to change without prior notice for quality improvement.

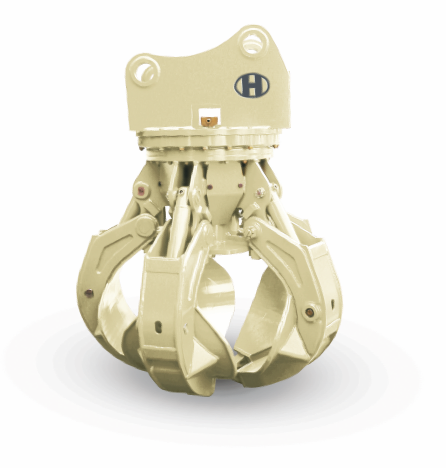

B-Type

Capacity Weight Min Max H H1 Carrier

600 1050 849 1859 1850 1550 12~18

800 1300 969 1939 1970 1674 18~25

1000 1500 1192 2013 2203 1969 28~35

H OG 600

H OG 800

LT kg mm mm mm mm ton

H OG 1000

1500 1800 1315 2403 2381 2107 36~42

H OG 1500

2000 2100 1705 2699 2939 2673 43~47

H OG 2000

Unit

MAX

MIN

Tine-Type

Tine of the inner plate appearance separated

Open Type

Half-enclose Type

Enclose Type

A-Type

B-Type

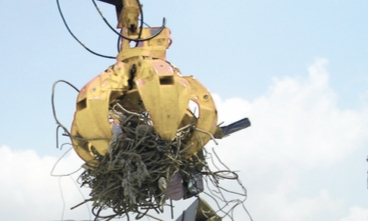

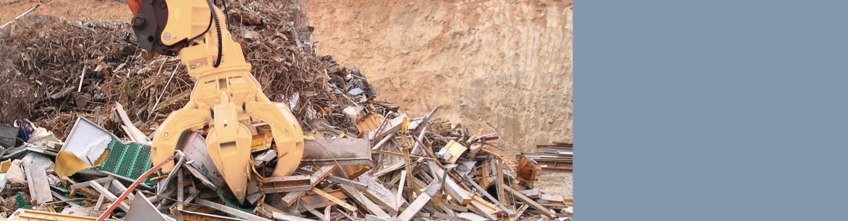

•Bulk scrap metal, and phage up get off work •Industry, environmental waste up get off work
