VO Series Large Range

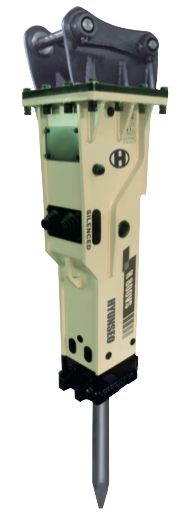

● Silenced Type (Box Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

3020 6657 3306 130 170~230 45~61 160~180 2320~2610 250~400 1 1/4” 160 6.3 30~45

H 400VS

4120 9083 3782 149 190~270 50~72 160~180 2320~2610 200~350 1 1/4” 180 7.1 45~60

H 500VS

7415 16347 4443 175 290~370 77~98 190~210 2755~3045 200-400 1 1/4” 210 8.3 70~100

H 800VS

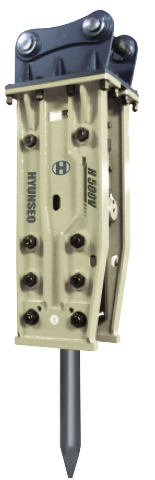

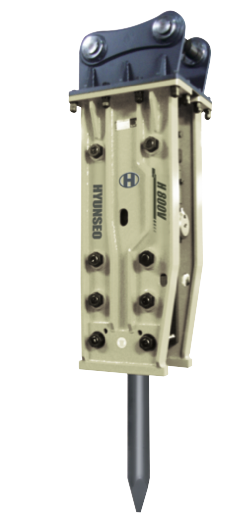

● Standard Type (Open Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

2960 6525 3420 134 170~230 45~61 160~180 2320~2610 250~400 1 1/4” 160 6.3 30~45

H 400V

3905 8609 3830 150 190~270 50~72 160~180 2320~2610 200~350 1 1/4” 180 7.1 45~60

H 500V

7251 15985 4385 173 290~370 77~98 190~210 2755~3045 200-400 1 1/4” 210 8.3 70~100

H 800V

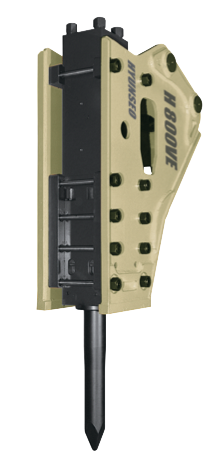

● Side Type (Triangle Type)

※ The above specifications are subject to change without prior notice for quality improvement.

Description

Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow

kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton

Unit

3085 6801 3350 132 170~230 45~61 160~180 2320~2610 250~400 1 1/4” 160 6.3 30~45

H 400VE

4010 8840 3750 148 190~270 50~72 160~180 2320~2610 200~350 1 1/4” 180 7.1 45~60

H 500VE

7180 15829 4250 168 290~370 77~98 190~210 2755~3045 200-400 1 1/4” 210 8.3 70~100

H 800VE
