The above specifications are subject to change without prior notice for quality
improvement.
Description
Applicable carrier
Dimension
Weight
Operating Pressure
Oil Flow
Frequency
Ripper
Tooth
A
B
C
D
12~16
1500
15
1650
870
500
900
180~200
100~150
1500
20~26
2500
21
2116
1309
705
1100
210~240
170~190
1500
22~30
3150
32
2433
1300
800
1260
240~250
180~200
1400
40~55
5600
61
3300
2260
1150
1800
240~250
250~260
1100
HVR 06

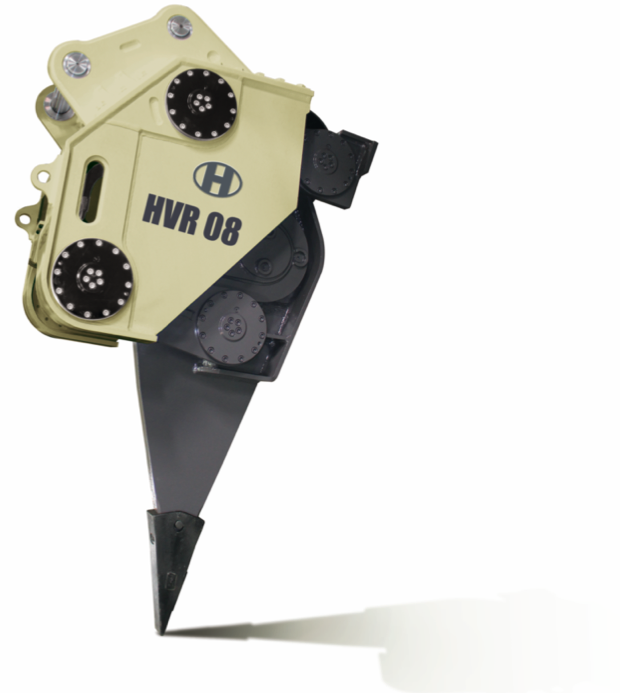

HVR 08
HVR 14
HVR 20
ton
kg
kg
mm
mm
mm
mm
bar
lpm
bpm
30~39
4600
32
3250
2140
1100
1680
240~250
200~220
1200
HVR 10
Unit
B
A
F
D
C
Control Valve
IN, OUT Port
Drain Port
Top Bracket
Housing
Upper, Under Link
Hydraulic Motor
Upper, Under Link
Body
Tooth
•Low maintenance
•Environment‐friendly
•Lower cost per cubic meter produced
•Low noise level, Suitable for city & public works
•Productivity : Up to 3~4 times compare to equivalent breakers
•Suitable for Sedimentary materials, Gypsum, Concrete, Slate, Marble, Gneiss,
Sandstone, Limestone
► Feature
