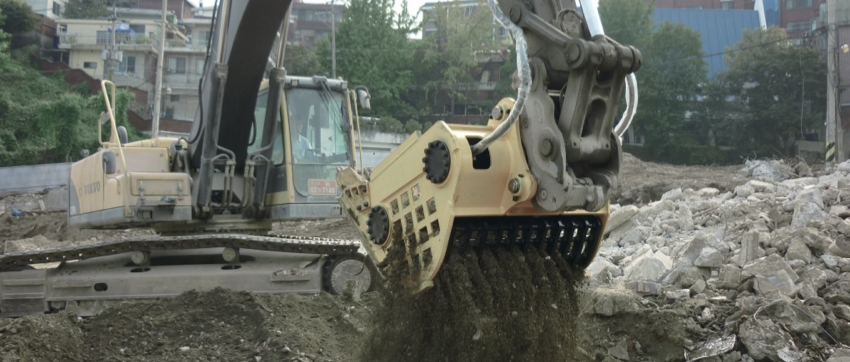

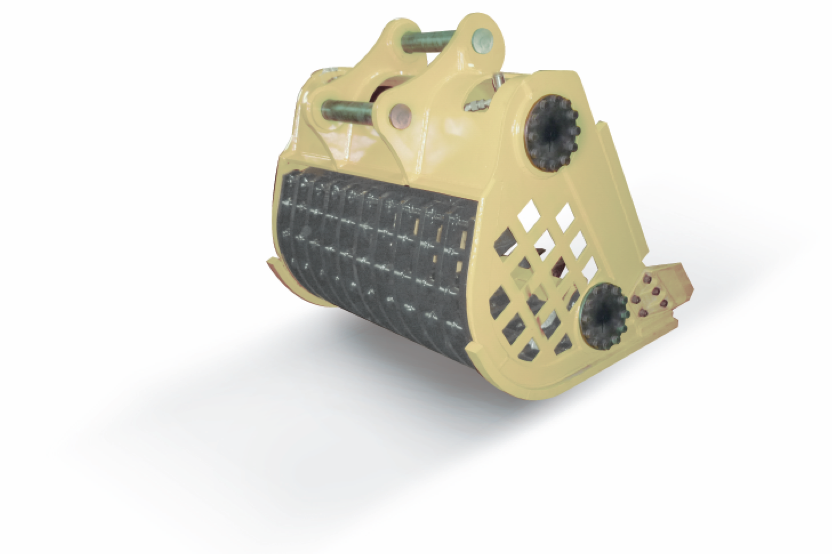

Vibrating Bucket

※ The above specifications are subject to change without prior notice for quality improvement.

Model

HVB 06 HVB 08 HVB 10

12~16 18~26 28~36

1500 1700 1940

1300 1300 1450

1210 1400 1530

1450 1620 1670

180~200 180~200 180~200

1100 1100 1330

100×100 100×100 100×100

Applicable Carrier(ton)

Weight (kg)

A (mm)

B (mm)

C (mm)

Operating pressure (bar)

Internal width (mm)

Hole size (mm)
