※  The above specifications are subject to change without prior notice for quality improvement.
Description

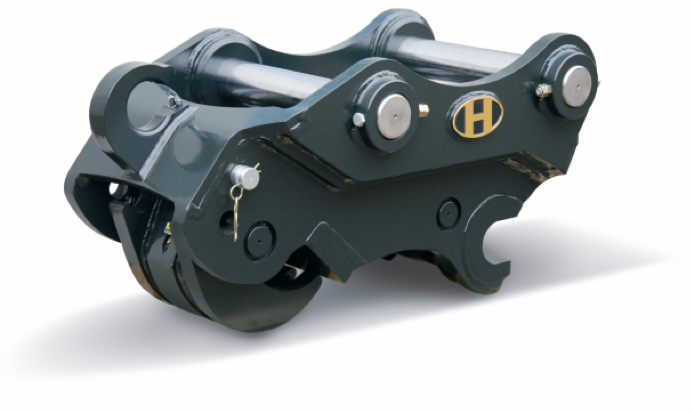

 Applicable Carrier  L  H  H1  W  W1  W2  B  Weight  Operating Pressure  Flow Rate
5~6 510~585 293 179 259~269 155~170 153~168 255~290 60~70
11~13 824 391 243 408~423 260~275 257~273 375~400 170~190
40~350 10~30
18~22 970 491 302 477~496 306~334 303~329 450~480 330~340
HQC 03L
HQC 06L
ton mm mm mm mm mm mm mm kg bar lpm
HQC 08L
23~30 1076~1094 552~557 340 535~584 351~411 347~407 487~540 510~528
HQC 10L
31~36 1057~1072 587~610 355~371 586~624 385~432 382~429 510~580 630~636
HQC 14L
37~42 1208~1238 613~627 365~383 624~664 401~443 429~438 533~600 670~755
HQC 17L
43~50 1253~1285 628~662 380~401 661~726 431~473 429~468 556~612 760~890
HQC 20L
Unit
● Pull Type
L
B
W
H 1
H
● Push Type
※  The above specifications are subject to change without prior notice for quality improvement.
Description

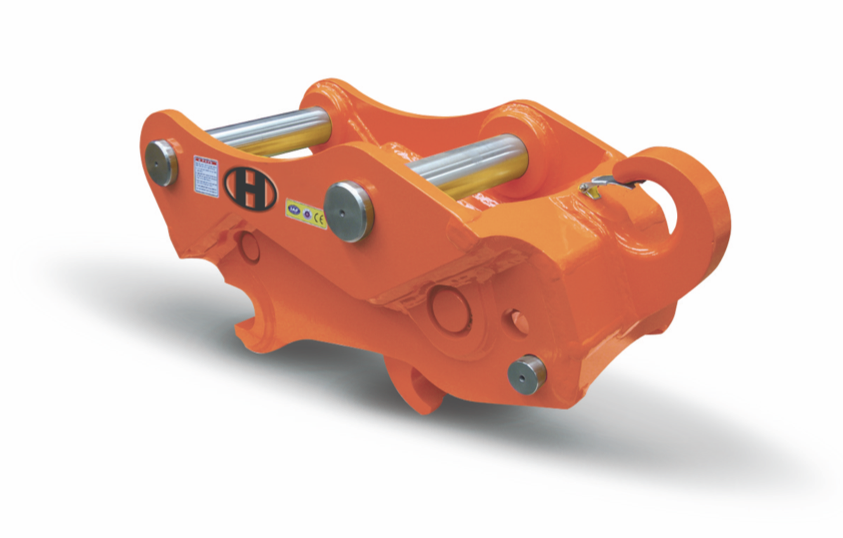

 Applicable Carrier  L  H  H1  W  B  Weight  Operating Pressure  Flow Rate
5~6 575~600 286 178.5 259~269 45 55~70
11~13 815 306 230 408~423 50 170~190
40~320 10~20
HQC 03H
HQC 06H
ton mm mm mm mm mm kg bar lpm
Unit
▶
▶
▶
• Installation   Steps
